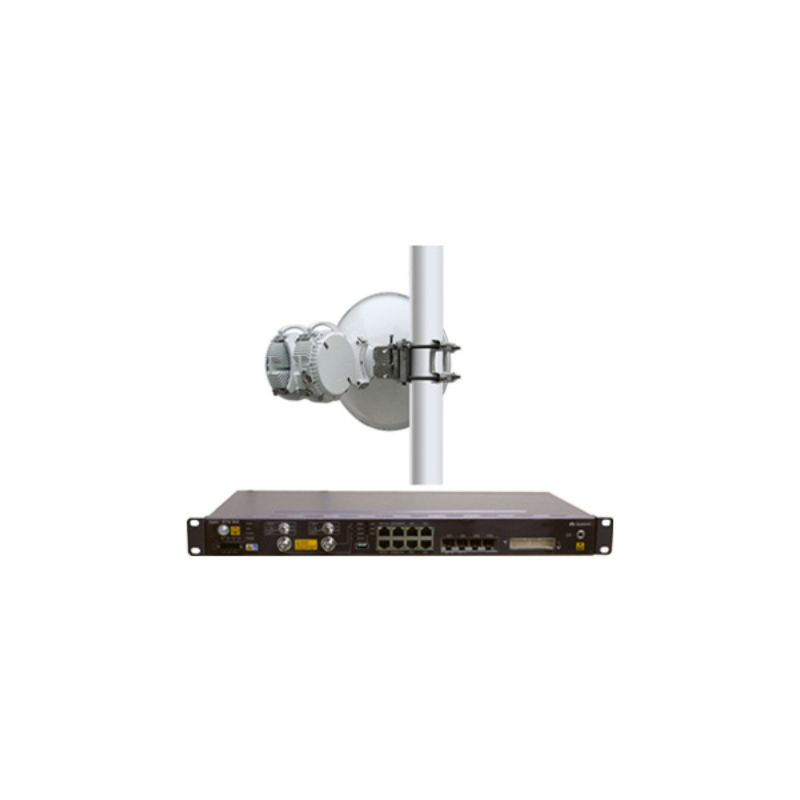

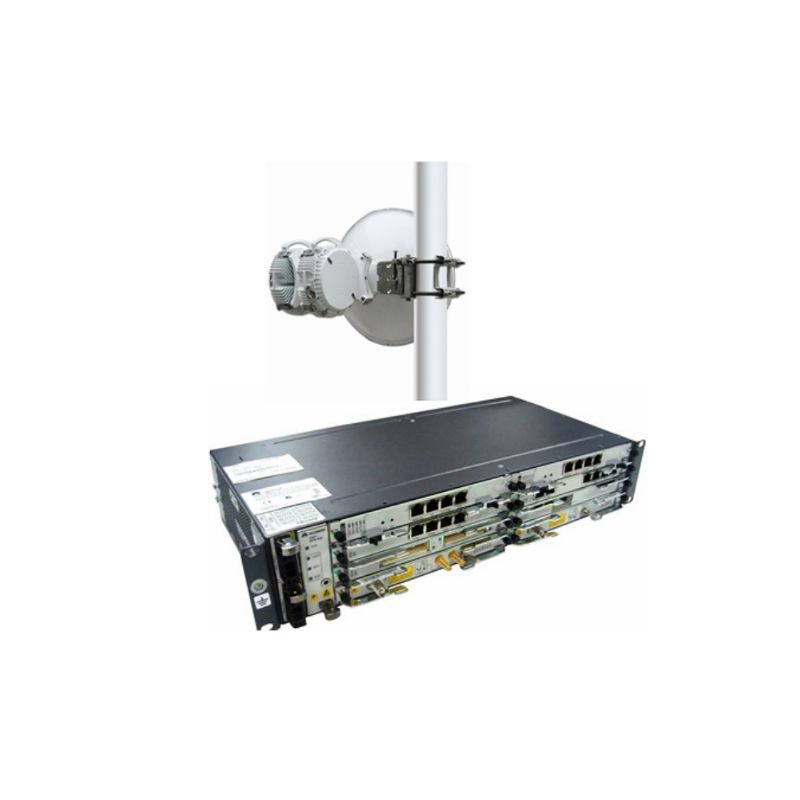

RTN380AX 52433010 52433011 A80S06T2AC-3NX Microwave Antenna And Antenna Suite Accessories
Type：Microwave
Model Number：RTN380AX
Place of Origin：Guangdong, China
Frequency band：71~76, 81~86 GHz
Maximum Air-interface Capacity：10 Gbit/s
Installation：full-outdoor radio equipment and no need
Powering Supply：Power over Ethernet, matched with Huawei Power Injector
Interfaces：two 10GE(o) ports, one GE(e) port, one P&E port
Model：A80S06T2AC-3NX
Warranty：1 YEAR
Description
|
BOM
|
Model
|
Description
|
|

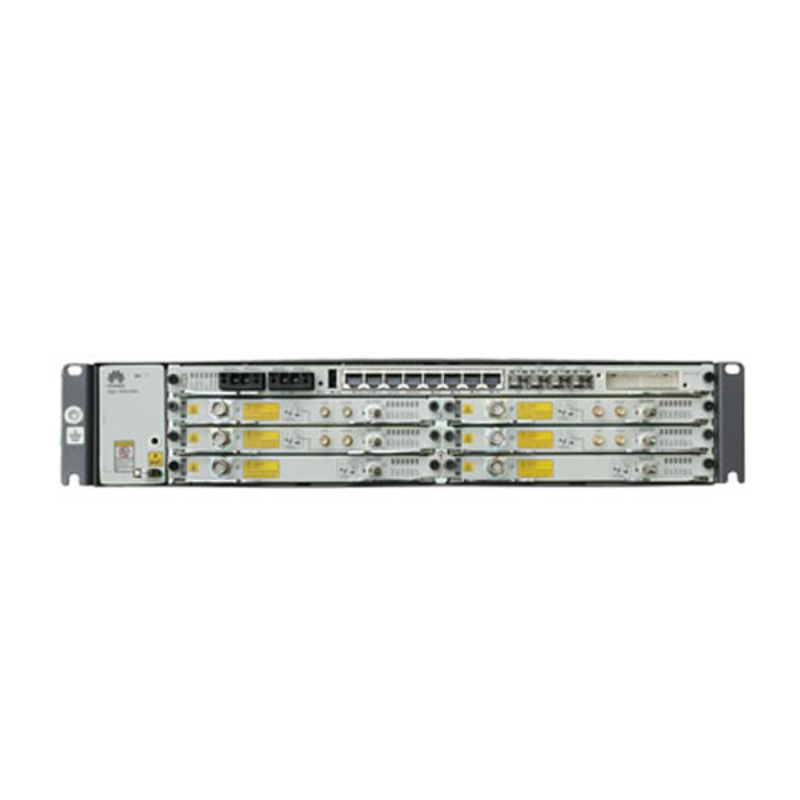

RTN590A MainEquipmet
|
||
|
02312RPE
|
SLFMSITE23
|

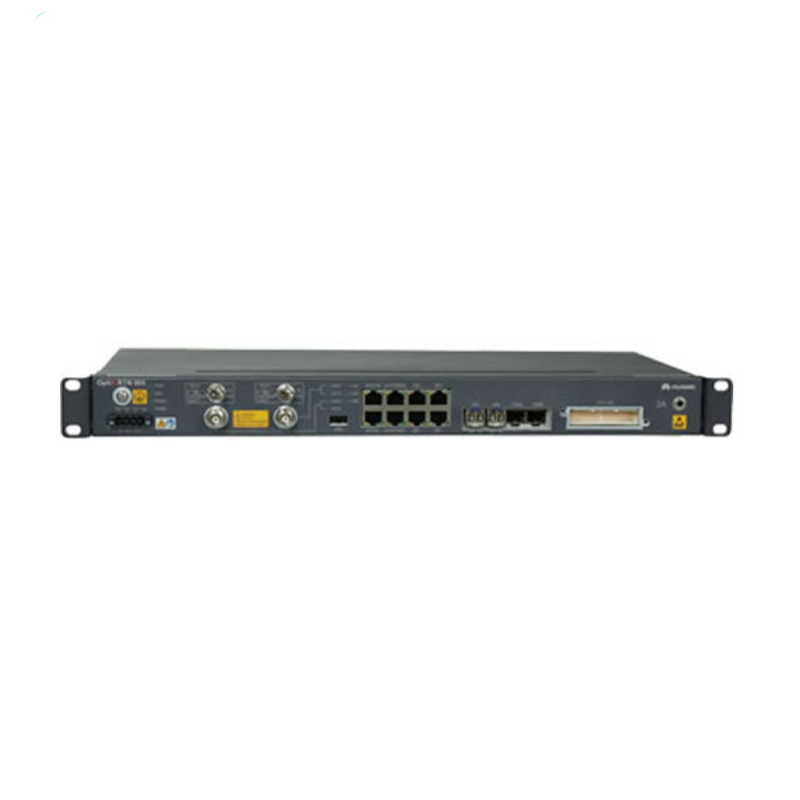

RTN 950A Basal Configuration 4*GE(RJ45)+2*10GE(SFP+)+16*E1+2*GE/STM-1(SFP) Include IDU Installation Materials
|
|
02313JEB
|
SLFMSITE26
|
RTN 950A Basal Configuration 2*GE(RJ45)+2*10GE(SFP+)+2*COMBO+16*E1+2*GE/STM-1(SFP) Include IDU Installation Materials
|
|
Outdoor Cabinet System
|
||
|
03022YAS
|
SL91MN1
|
Multiple-protocol Null port circult emulation extended board
|
|
52413893 |

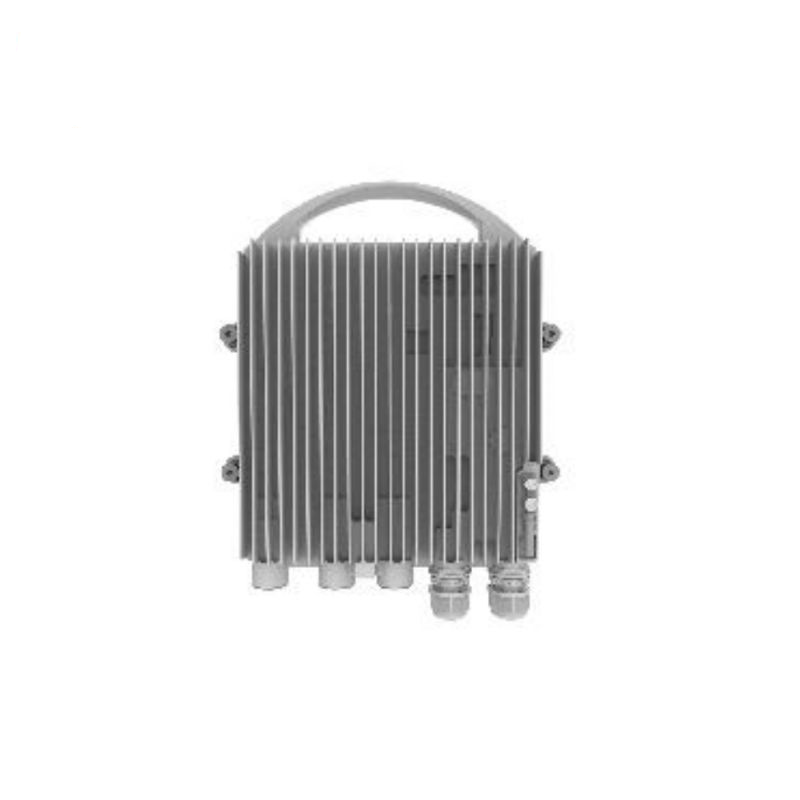

ODU(XMC-3) |
Microwave ODU,RTN XMC,23G,-3,High site,H,23011MHz,23618MHz,21779MHz,22386MHz,Without doc,WR-42,H01,1232MHz,Sub Band
B,23011MHz,23618MHz |
|
IDU
|
||
|
52432956
|
A13D15D18D12MB-3NX
|
Microwave Antenna,A13D15D18D18MB-3NX,13-18G,1800mm,UHP-M Multi-band,Basic Circular
Waveguide,13G:44.8dBi;15G:46.2dBi;18G:47.5dBi,30dB,with english doc,without OMT, C3 |
|
52432957
|
A13D15D18D18MB-3NX
|
Microwave electric Accessory,Multi-band Filter,12.75~13.25G & 14.4~15.35G & 17.7~19.7G,for UHP-M Multi-band antenna and
XMC-5D,With English doc |
|
52443520
|
MBF13&15&18-5D
|
TDM/Hybrid/Packet Large capacity System control and Cross-connect Board
|
|
88034VMM
|
LSL9BSPS04
|
RTN 950A Basic Software Package (Per Subrack)
|
|
88036NFS
|
SLFS00V1R020
|
RTN 950A Basic Software Package,V100R020(Per Subrack)
|
|
88031RGT
|
SLFSUPDATE01
|
RTN 950A,Software Release Entitlement(Per Subrack,R(N)- > R(N+1))
|
|
02231XKP
|
SL9IDU02-Accessories
|
OptiX RTN 950/950A IDU Required Installation Material Including Cat.5e Cable+ Power Cable+16E1 Cable,only for India
|
RTN380AX
Frequency Bands: 71~76, 81~86 GHz
Modulation: BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 1024QAM
Channel Spacing: 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, 2000 MHz
Maximum Air-interface Capacity: 10 Gbit/s
Installation: full-outdoor radio equipment and no need for an extra installation site
Powering Supply: Power over Ethernet, matched with Huawei Power Injector
Interfaces: two 10GE(o) ports, one GE(e) port, one P&E port
Product EOM Time: 2025-12-31
Product EOS Time:2035-12-31
Product EOS Time:2035-12-31
|
Item
|
RTN510 Description
|
|
|
AP
|
RT
|
|
|
Frequency band
|
4.910 to 5.970 GHz
|
4.910 to 5.970 GHz
|
|
Channel spacing
|
10/20/40/80 MHz
|
10/20/40/80 MHz
|
|
Modulation
|
MCS0 (BPSK) to MCS9 (256QAM)
|
MCS0 (BPSK) to MCS9 (256QAM)
|
|
Switching capacity
|
200 Mbit/s to 3.8 Gbit/s
|
100 Mbit/s
|
|
Service port
|
One GE optical port
Two GE electrical ports (one for power over Ethernet (PoE))
|
One GE electrical port (for PoE)
|
