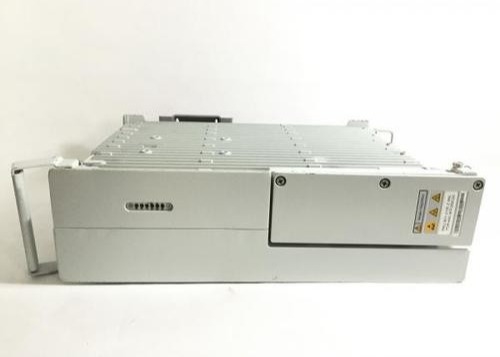

2g 3g 4g RRU Huawei Беспроводная сеть 700Mhz-2100Mhz Частотный диапазон TD Single Mode
| Место происхождения: | Китай |
| Название бренда: | Huawei |
| Сертификация: | CE FCC RoHS |
| Номер модели: | 2G 3G 4G RRU |
| Минимальное количество заказа: | Переговоры |
|---|---|
| Цена: | Переговоры |
| Подробности упаковки: | Экспортная картонная упаковка |
| Время доставки: | 7-15 дней |
| Условия оплаты: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Возможность поставки: | 200 шт. в неделю |
Описание
| ПРИЛОЖЕНИЕ: | Wireless Networking Sites | МОДЕЛЬ: | 2G 3G 4G RRU |
|---|---|---|---|
| CONDITION: | 100% Original Brand | WARRANTY: | 1 Year |
| ВЕС: | 10.5~20.5 Kg | STORAGE CONDITION: | Consultable |
| ВЫСШИЙ СВЕТ: |
4g RRU Huawei Wireless Network, 700Mhz huawei rru, 2100Mhz huawei rru |
||
Обзор продукции
RRU Functions:
The Remote Radio Unit (RRU) consists of the high-speed interface unit, signal processing unit, power amplifier, duplexer,
extension ports, and power module.
The RRU performs the following functions:
* Receives downlink baseband data from the BBU and sends uplink baseband data to the BBU.
* Receives RF signals from the antenna system, down-converts the signals to intermediate frequency (IF) signals, amplifies the IF signals, performs analog-to-digital conversion, and up-converts RF signals to the transmit (TX) band.
* Multiplexes receive (RX) and TX signals on the RF channel so that these signals can share the same antenna channel, and filters the RX and TX signals.
* Provides a built-in Bias Tee (BT). The built-in BT couples RF signals and OOK signals and transmits them through the TX/RX port A. The built-in BT also supplies power to the tower mounted amplifier (TMA).
* The RRU can work with the Monitoring Extension Box (MEB). The MEB can transmit external RS-485 communication signals and dry node monitoring signals into the RRU, implementing information monitoring and reporting.
* When an RRU is equipped with an AC/DC power module, the RRU and the power module together are called an AC RRU.
|
Take the Following Model RRU 5909 As Example |
|||||
|
Модель |
Frequency Band (MHz) |
Receive Frequency Band (MHz) |
Transmit Frequency Band (MHz) |
Mode |
IBW (MHz) |
|
RRU5909 |
1800 |
1710 to 1785 |
1805 to 1880 |
GSM, LTE FDD and GL |
45 |
Ordering Information
Huawei RRU5909 2100MHz/1800MHz/900MHz Radio Remote Unit
| 02311PPP RRU5909 RRU5909-WD5MERULC30B-WUYI(TX1805-1880MHz/RX1710-1785MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311PPN RRU5909 RRU5909-WD5MERULC3KA-WUYI(TX1825-1875MHz/RX1730-1780MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311TAY RRU5909 RRU5909-WD5MJRULC8B-WUYI(TX935-960MHz/RX890-915MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311TBA RRU5909 RRU5909-WD5MJRULC8Z-WUYI(TX925-960MHz/RX880-915MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311TBB RRU5909 RRU5909-WD5MERULC30D-WUYI(TX1805-1880MHz/RX1710-1785MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311TBD RRU5909 RRU5909-WD5MIRULC10C-WUYI(TX2110-2170MHz/RX1920-1980MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311TBC RRU5909 RRU5909-WD5MIRULC1GA-WUYI(TX2110-2165MHz/RX1920-1975MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311VSV RRU5909 RRU5909-WD5MERULC3H-WUYI(TX1825-1875MHz/RX1730-1780MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311SJK RRU5909s RRU5905w-WD5MERULG32-WUYI(TX1805-1880MHz/RX1710-1785MHz,-48VDC,9.8G,2T2R,2*80W) |
| 02311PRG RRU5909s RRU5909s-WD5MERULC30C-WUYI(TX1805-1880MHz/RX1710-1785MHz,-48VDC,9.8G,2T2R,2*60W) |
| 02311PRK RRU5909s RRU5909s-WD5MIRULC10B-WUYI(TX2110-2170MHz/RX1920-1980MHz,-48VDC,9.8G,2T2R,2*60W) |
02312AKH RRU5909w RRU5909w-WD5MJRULC8Z2-WUYI(TX927-960MHz/RX882-915MHz,-48VDC,9.8G,2T2R,2*60W) |
