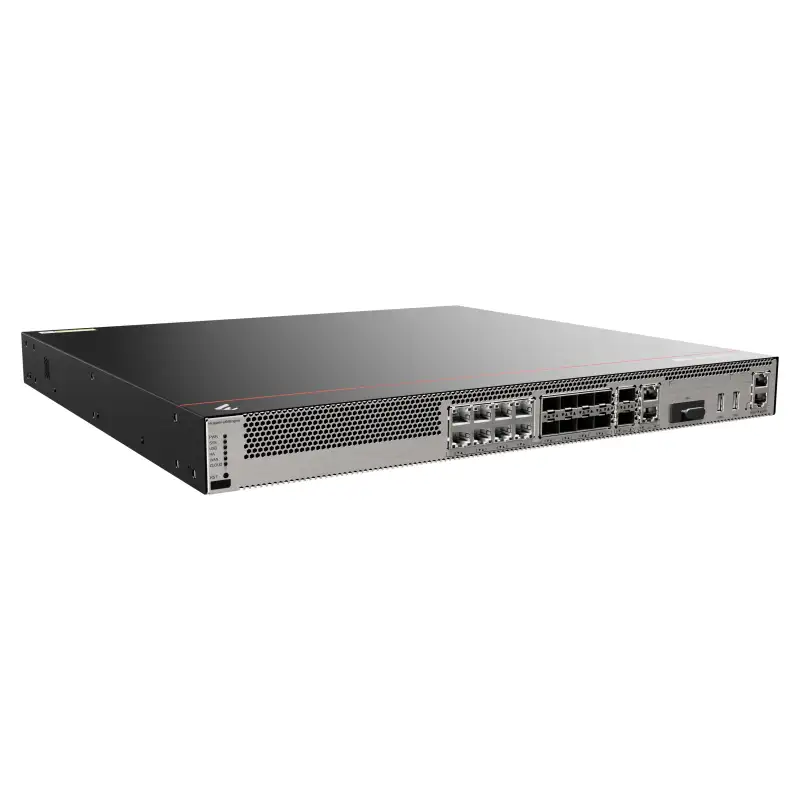

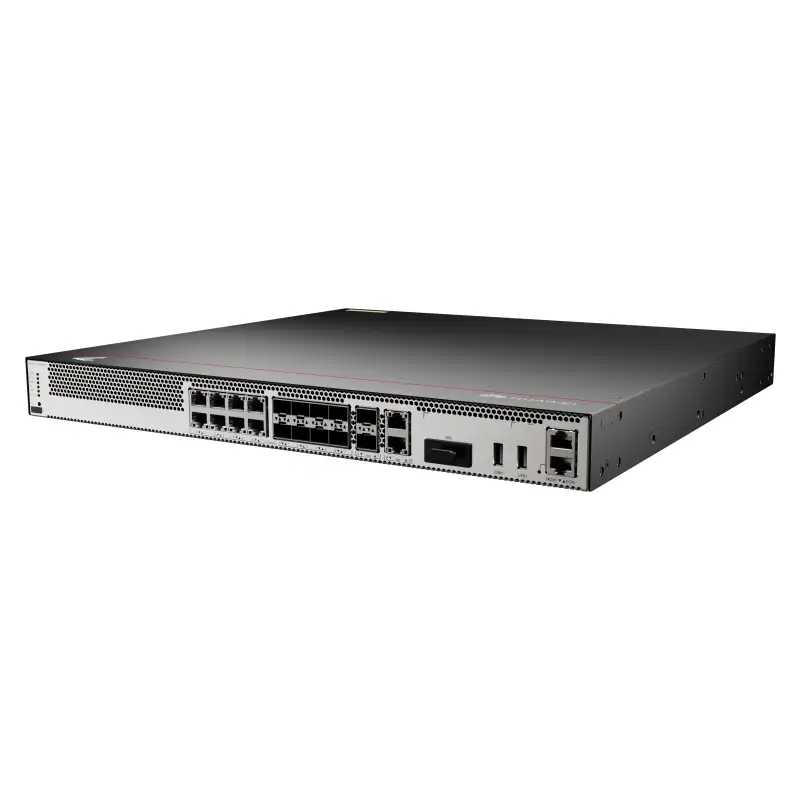

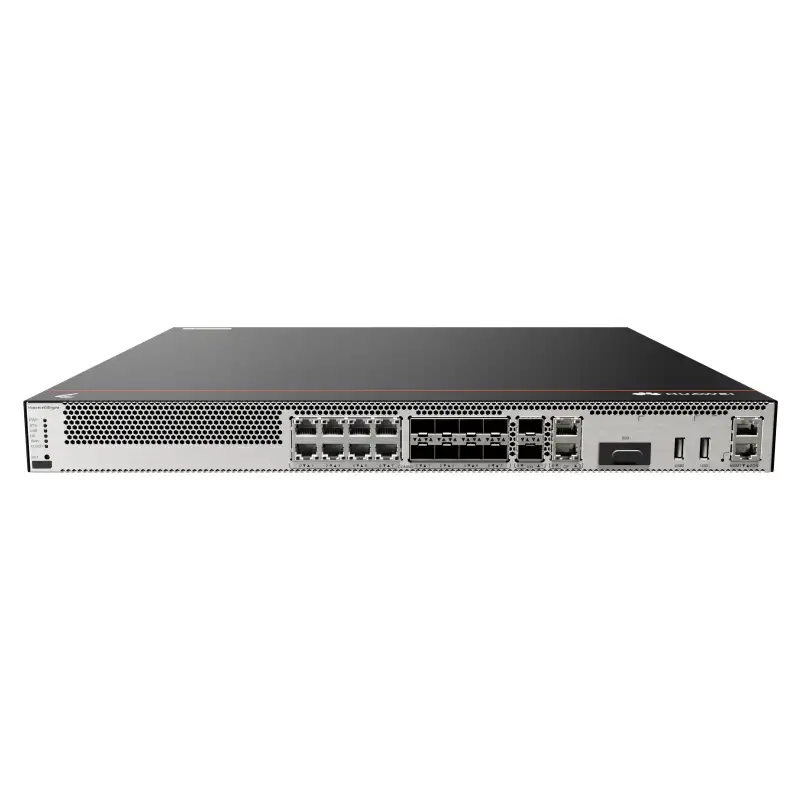

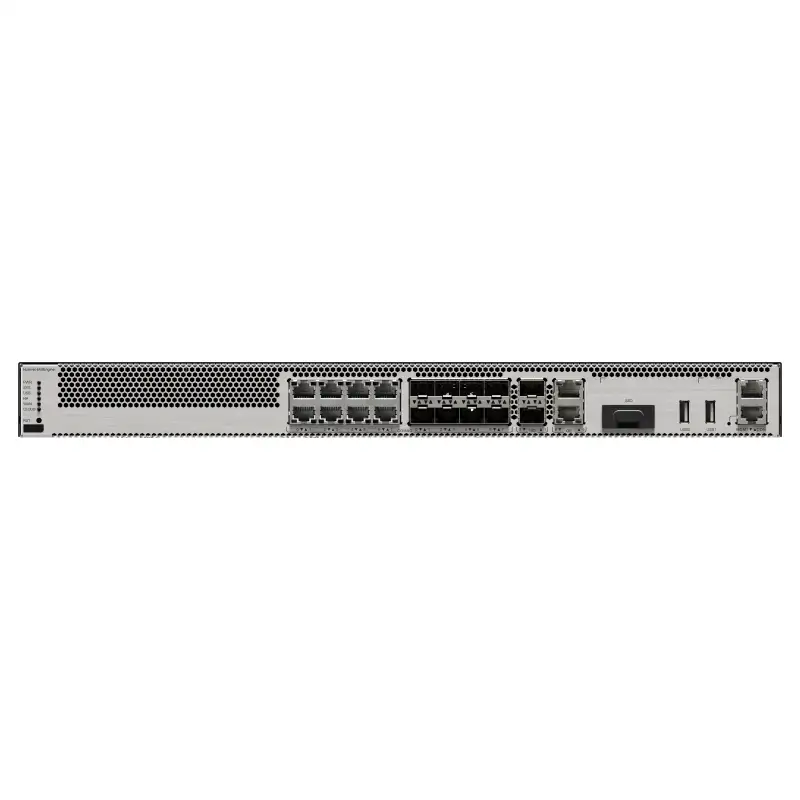

Firewall & VPN Gateway 88036LAB LIC-USG6575E-B-AI-3Y AI Detection Model Upgrades
|
Basic Information
|
|
|
Part Number
|
02353LKD-002
|
|
Model
|
USG6575E-B-AC
|
|
Description
|
USG6575E-B AC Host(16*GE RJ45+8*GE Combo+2*10GE SFP+,1 AC Power)
|
|
First supported version
|
V600R007C20SPC600
|
|
Technical Specifications
|
|
|
Installation Type
|
Rack,Work bench
|
|
Cabinet installation standard
|
Cabinet with a depth of 600 mm or above
|
|
Wide [mm]
|
442 mm
|
|
Depth [mm]
|
420 mm
|
|
Height [mm]
|
43.6 mm
|
|
Chassis height [U]
|
1
|
|
Weight without packaging [kg(lb)]
|
6.25 (13.78)
|
|
Weight with packaging [kg(lb)]
|
8.25 (18.19)
|
|
Maximum power consumption [W]
|
76.9
|
|
Maximum heat dissipation [BTU/hour]
|
262.38
|
|
Heat dissipation mode
|
The fan module locates at the air exhaust of the system.
|
|
Power supply mode
|
AC built-in
|
|
Rated input voltage [V]
|
100 V to 240 V, 50 Hz/60 Hz
|
|
Input voltage range [V]
|
90 V to 264 V, 47 Hz to 63 Hz
|
|
Maximum output power [W]
|
150
|
|
Maximum input current [A]
|
3
|
|
CPU
|
1 CPU, 4 cores/CPU, up to 1.4 GHz
|
|
Memory
|
DDR4 8 GB
|
|
NOR Flash
|
64 MB
|
|
NAND Flash
|
2 GB
|
|
Hard disk
|
Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from Huawei based on the site requirements. The hard disk is hot swappable.
|
|
Redundant power supply
|
Two power modules are supported for 1+1 power redundancy.
|
|
Redundant fans
|
1+1
|
|
Number of power modules
|
1
|
|
Number of fan modules
|
2
|
|
Types of fans
|
Pluggable
|
